Ultrapure Water Systems

Request More Information Download Biopharm MASTERpak™ MICRO Product Highlights

Overview

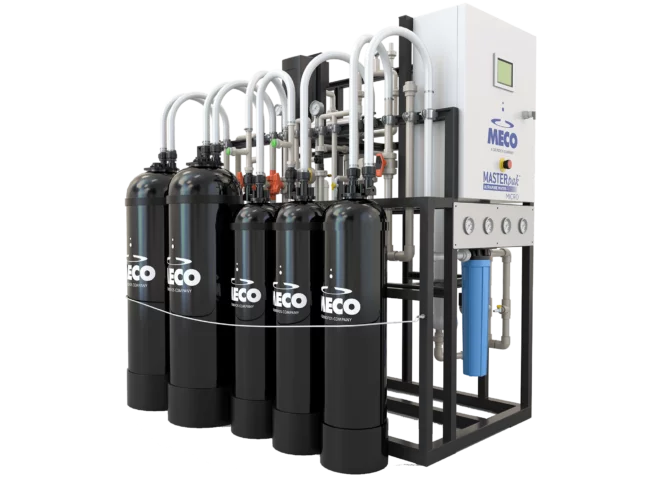

MECO’s MASTERpak™ MICRO is a complete turnkey system designed for ultrapure water generation. The MASTERpak™ MICRO unifies loop operation and make-up operation into one simple system customized to your plant requirements. Our systems consistently produce water that exceeds global pharmacopeia standards including most lab water standards and can also meet Ambient Water for Injection (WFI) standards.

Sustainable Ultrapure Water Solutions

The MASTERpak™ MICRO is designed with sustainability in mind reducing environmental water and energy footprint, lowering OPEX cost for chemicals, water, electricity, and square footage, and reducing the risk of biological loop contamination and potential
product contamination.

The MECO MASTERpak™ MICRO can handle multiple loops with flows from 5–100gpm and can meet production demands up to 100gpm.
With MECO’s full range of on-site services, including service deionization tanks that are regenerated in a USP-dedicated plant, eliminating the risk of loop contamination from co-mixing resin with an industrial or water reuse application.

Contact the MECO Team

Gallery

Highlights

Technical Data
Model CAPACITY IN GPM
MP0.5M3-5
MP1M8-12
MP1.5M20-35
MP2M30-50
MP2.5M45-70
MP3M60-90
Overview
  • Complete turnkey ultrapure water system
  • Product quality exceeds global pharmacopoeia standards including most lab water standards and can also meet Ambient Water for Injection standards.
  • Reduced environmental water and energy footprint
  • Low OPEX cost for chemicals, water, electricity, and square footage
  • Reduced risk of biological loop contamination and potential product contamination
  • Integrated controls system
  • Reduced capital and operational costs
  • Optional complete validation package with IQ, OQ, and PQ protocol with or without execution
  • Supported by MECO’s full range of on-site services, including service deionization tanks that are regenerated in a USP-dedicated plant, eliminating the risk of loop contamination from co-mixing resin with an industrial or water reuse application.
  • Backed by warranty
  • Efficient component layout
Standard Features and Equipment Details
  • ASTM Type 1, 2, USP Purified, CLRW or HPLC Grade Water Quality
  • Makeup or generation capacities from 1,000 – 20,000 GPD
  • Recirculation with a quiet, VFD-controlled distribution pump
  • Optional high intensity 185/254nm UV for ultra-low TOC values
  • Up to 50% lower power consumption
  • Optional storage tank sizes
  • Sanitary system design with Infrared Heatfused polypropylene piping
  • Instrumentation for continuous monitoring
